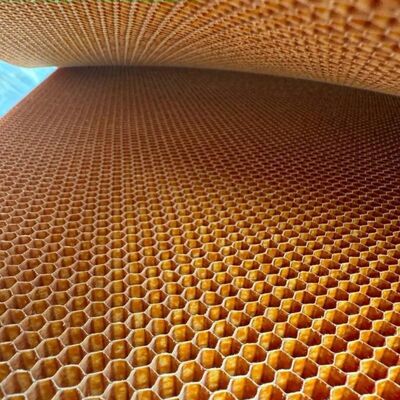

3.2mm 4.8mm Cell Size Aramid Honeycomb Core Outstanding Corrosion Resistance
1. Descriptions:
Aramid honeycomb core is a kind of structural core material, which has been widely used in the field of aerospace. In the production of aramid honeycomb core, phenolic resin has always been used as reinforcing material. With the increasing requirements for the mechanical properties of aramid paper honeycomb core in some fields, the performance indexes of aramid paper honeycomb core products are also gradually improved, so as to better meet the aerospace field.
2. Specifications:
| Specifications |
Cell size
(mm/inch)
|
Density
(kg/m³)
|
Compression
strength
(MPa)
|
L-Shear
strength
(MPa)
|
W-Shear
strength
(MPa)
|
| Commercial Grade Aramid Honeycomb Core |
| BHC1313-3.2-48 |
3.2 |
1/8 |
48 |
1.9 |
1.16 |
0.62 |
| BHC1313-3.2-64 |
3.2 |
64 |
3.1 |
1.48 |
0.82 |
| BHC1313-3.2-80 |
3.2 |
80 |
4.7 |
1.95 |
1.05 |
| BHC1313-3.2-96 |
3.2 |
96 |
6.6 |
2.45 |
1.42 |
| BHC1313-4.8-32 |
4.8 |
3/16 |
32 |
0.9 |
0.58 |
0.36 |
| BHC1313-4.8-48 |
4.8 |
48 |
2.6 |
0.98 |
0.56 |
| BHC1313-4.8-64 |
4.8 |
64 |
3.4 |
1.7 |
0.92 |
| BHC1313-4.8-80 |
4.8 |
80 |
6 |
1.95 |
1.1 |
| BHC1313-4.8-96 |
4.8 |
96 |
7.3 |
2.26 |
1.32 |
| BHC1313-6.4-24 |
6.4 |
1/4 |
24 |
0.54 |
0.34 |
0.18 |
| BHC1313-6.4-32 |
6.4 |
32 |
0.8 |
0.54 |
0.3 |
| BHC1313-6.4-48 |
6.4 |
48 |
2.05 |
1 |
0.56 |
| BHC1313-6.4-64 |
6.4 |
64 |
3.4 |
1.54 |
0.79 |
| BHC1313-9.5-24 |
9.5 |
3/8 |
24 |
0.52 |
0.32 |
0.16 |
| BHC1313-9.5-32 |
9.5 |
32 |
0.68 |
0.56 |
0.29 |
| BHC1313-9.5-48 |
9.5 |
48 |
9.6 |
1.15 |
0.66 |
| Aerospace Grade Aramid Honeycomb Core |
| BHC1313A-3.2-48 |
3.2 |
1/8 |
48 |
2 |
1.26 |
0.72 |
| BHC1313A-3.2-64 |
3.2 |
64 |
3.2 |
1.58 |
0.92 |
| BHC1313A-3.2-80 |
3.2 |
80 |
4.8 |
2.05 |
1.15 |
| BHC1313A-3.2-96 |
3.2 |
96 |
6.7 |
2.55 |
1.52 |
| BHC1313A-3.2-128 |
3.2 |
128 |
11.4 |
3.05 |
1.88 |
| BHC1313A-3.2-144 |
3.2 |
144 |
13.3 |
3.15 |
2 |
| BHC1313A-4.8-32 |
4.8 |
3/16 |
32 |
1 |
0.68 |
0.46 |
| BHC1313A-4.8-48 |
4.8 |
48 |
2.7 |
1.08 |
0.66 |
| BHC1313A-6.4-48 |
6.4 |
1/4 |
48 |
2.15 |
1.1 |
0.66 |
| BHC1313A-9.5-48 |
9.5 |
3/8 |
48 |
9.7 |
1.25 |
0.76 |
3. Aramid honeycomb core has several advantages:
• Super light and high strength anti-fatigue
• Outstanding corrosion resistance and flame resistance
• Excellent environment adaptability and electric insulating
• Good dielectric properties and high stability
4. Applications:
• Rail Transit, Aerospace, Radome, Yacht, Sports products, Automobile and so on
5. Quality control:
A very technical engineering team. The general manager has worked in the Netherlands. The core technologies are introduced from the Netherlands. Others are very young and have more than 5 years of practical experience.
Strict QC team: 8 people are responsible for Aramid honeycomb core of quality control of parts, processing, testing, packaging, etc.

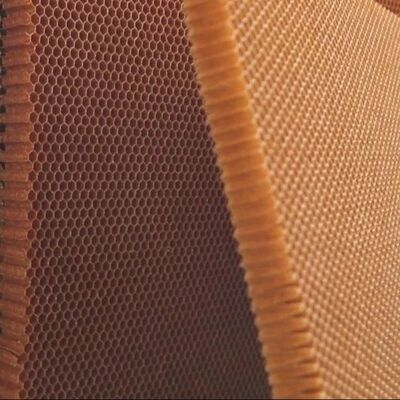

6. Aramid honeycomb core of more pictures:
7. Company profile
Suzhou Beecore Honeycomb Materials Co.Ltd, it is the world's leading professional manufacturer of honeycomb materials. Since it' s established, the company has been committed to the research and development of honeycomb technology, from slant-porous aluminum honeycomb core, honeycomb core, honeycomb panel, to the finished product which was using honeycomb panel as the solution, such as truck body, laser TV / projection screen etc.
8. Factory show
9. FAQ
Q1. What is aramid honeycomb core usd for?
A: Aramid honeycomb core is one of the best EMI materials. It can be divided into industrial use and aviation use. Aramid honeycomb core has been widely used in the Rail Transit, Aerospace, Radome, Yacht, Sports products, Automobile and so on.
Q2. What are the advantages of aramid honeycomb core?
A: Aramid honeycomb core has the advantages of super light and high strength anti-fatigue, outstanding corrosion resistance and flame resistance, excellent environment adaptability and electric insulating, good dielectric properties and high stability.
Q3. What is the packaging method of aramid honeycomb core?
A: Aramid honeycomb core of small samples are packed in cardboard and bulk orders are packed in plywood cases.
